We share many machine features with you in order to increase your production efficiency and effectiveness.
Key Machine Features
User Interface
Advanced, ergonomic and ease of use human-machine interface and Inpak software
Remote Access
Ability of remote access to the Inpak machine for immediate control and fault finding
Heater Configurations
Variable heating configurations with HTS, HTSS Black type ceramic heaters, adjustable according to mould index
Automatic Lubricants
Automatic lubrication systems for the chain and mechanical systems
Sensitive Positioning
Servo driven transport chains and automatic sheet stretching system adjustable on the screen.

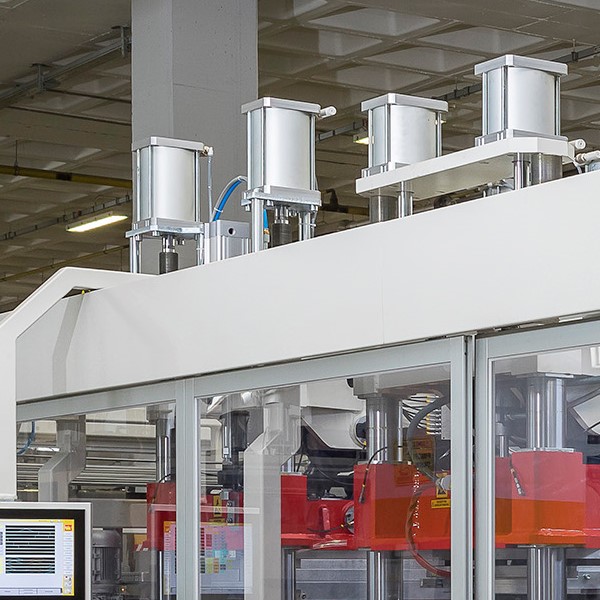

3rd Motion Servo Plug
Servo-plug assist to get better material distribution and homogenous products.
Longlife Systems
Long-life, special needle bearings, gapless joints in all toggle systems
System for Taking up the Play
System for taking up the play between the adjusting nuts and shafts when machine comes under load
Variable Stacking Options
All stacking variations will allow for A-B, A-B-C stacking sequences as standard

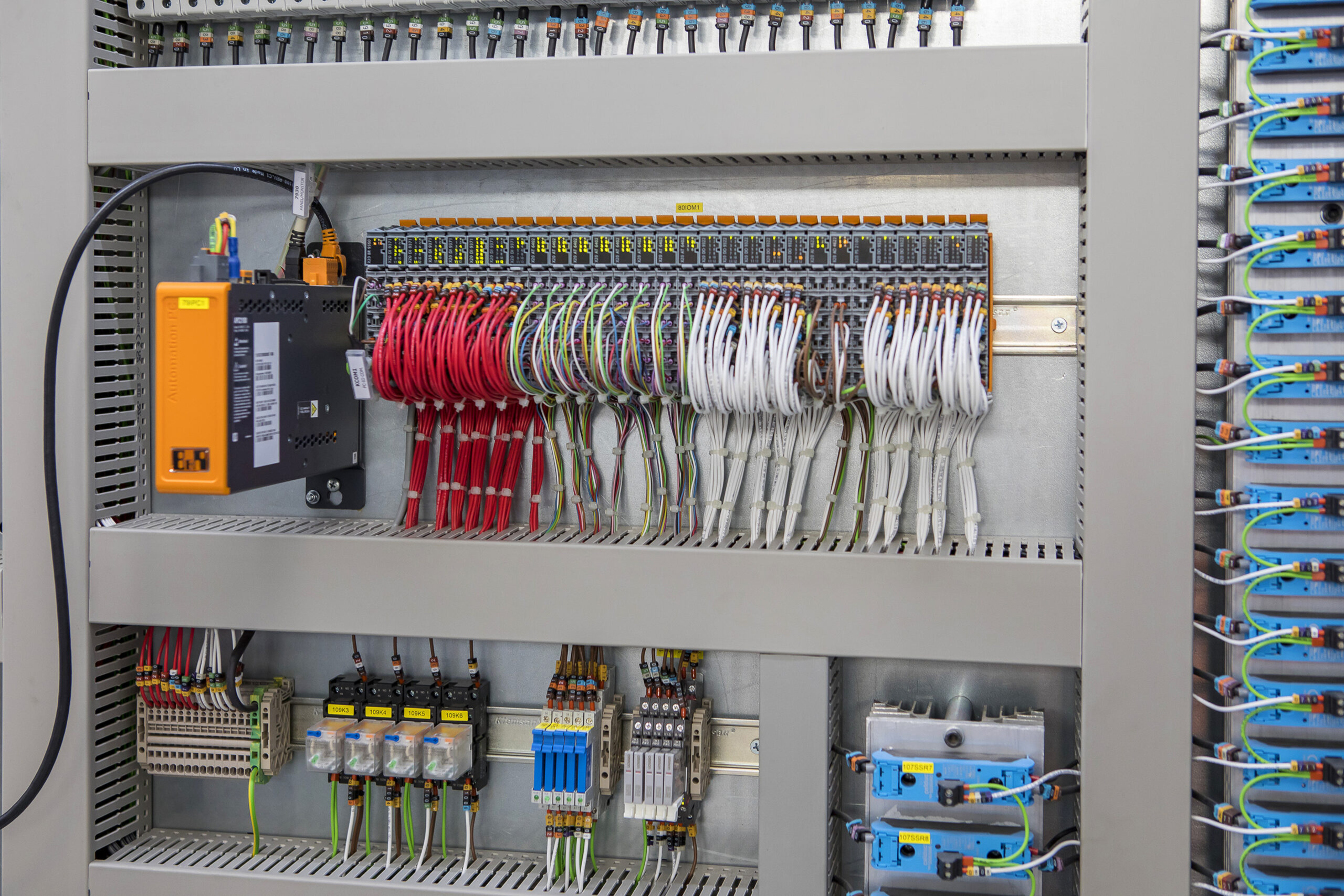

CE Marking
High quality brands of equipment
(B&R, SEW, SIEMENS, ABB, OMRON, SCHNEIDER, ELSTEIN, JWIS, FESTO, SMC, SKF, FAG, INA, BEKA-MAX)
Technical Specifications
| GENERAL | TSR-800 | TS-800 | TS-850 | TS-1000 |
|---|---|---|---|---|
| Maximum Mould Dimensions | 800 x 580 mm | 850 x 650 mm | 1000 x 750 mm | |
| Cycle Speed Max. (Dry Cycle) | 75 cycle/ min | 70 cycle/ min | ||
| Maximum Sheet Width | 840 mm | 890 mm | 1040 mm | |
| Maximum Sheet Thickness | 1,5 mm (PET, CPET, PP, PVC, PS, OPS, PLA) | |||
| Air Pressure | 6 Bar | |||
| Vacuum Pump | 100 m3/h | 200 m3/h | ||
| Power Consumption | 25-50 kW | 40-75 kW | ||
| Total Installed Power | 130-170 kW | 240-260 kW | ||
| Control Unit | B&R Industrial PC | |||
| Touch Screen | B&R Colorful, 18,5” | |||
| Central Lubrication | BEKA-MAX PC Controlled | |||
| Software | Inpak | |||
| PRE-HEATER | TSR-800 | TS-800 | TS-850 | TS-1000 |
|---|---|---|---|---|
| Heaters Power | 30 kW | 45 kW | ||
| Storage Length | 15 | 25 | ||
| Max. Temperature | 130 °C | |||
| HEATERS | TSR-800 | TS-800 | TS-850 | TS-1000 |
|---|---|---|---|---|
| Length of Heater | 1800 mm | 2010 mm | 2260 mm | |
| Upper Heating Power | 50 kW | 38-(50) kW | 64 kW | 92 kW |
| Lower Heating Power | 50 kW | 38-(50)kW | 64 kW | 92 kW |
| FORMING UNIT | TSR-800 | TS-800 | TS-850 | TS-1000 |
|---|---|---|---|---|
| Upper Forming Depth | 140 mm | |||
| Lower Forming Depth | 140 mm | |||
| Clamping Force | 800 kN | 300-(500) kN | 500 kN | 600 kN |
| Platens Stroke (Upper / Lower) | 150/150 mm | |||
| HOLE PUNCHING UNIT | TSR-800 | TS-800 | TS-850 | TS-1000 |
|---|---|---|---|---|
| Platens Stroke (Upper / Lower) | 150/150 mm | |||
| Clamping Force | 500 kN | 600 kN | ||
| CUTTING UNIT | TSR-800 | TS-800 | TS-850 | TS-1000 |
|---|---|---|---|---|
| Platens Stroke (Upper / Lower) | 150/150 | |||
| Clamping Force | 600 kN | 800 kN | ||
| CONVENTIONAL STACKER | TSR-800 | TS-800 | TS-850 | TS-1000 |
|---|---|---|---|---|
| Max. Vertical Stroke | 500 mm | |||
| Max. Horizontal Stroke | 600 mm | 800 mm | ||
| PACKING DETAILS | TSR-800 | |||
|---|---|---|---|---|
| Length (with Pre-Heater) | 11000 mm | 12000 mm | 12300 mm | 14000 mm |
| Width (with Elc. Cabinet) | 2700 mm | 3200 mm | ||
| Height | 2850 mm | 3050 mm | ||
| Weight | 13000-22000 kg | |||
